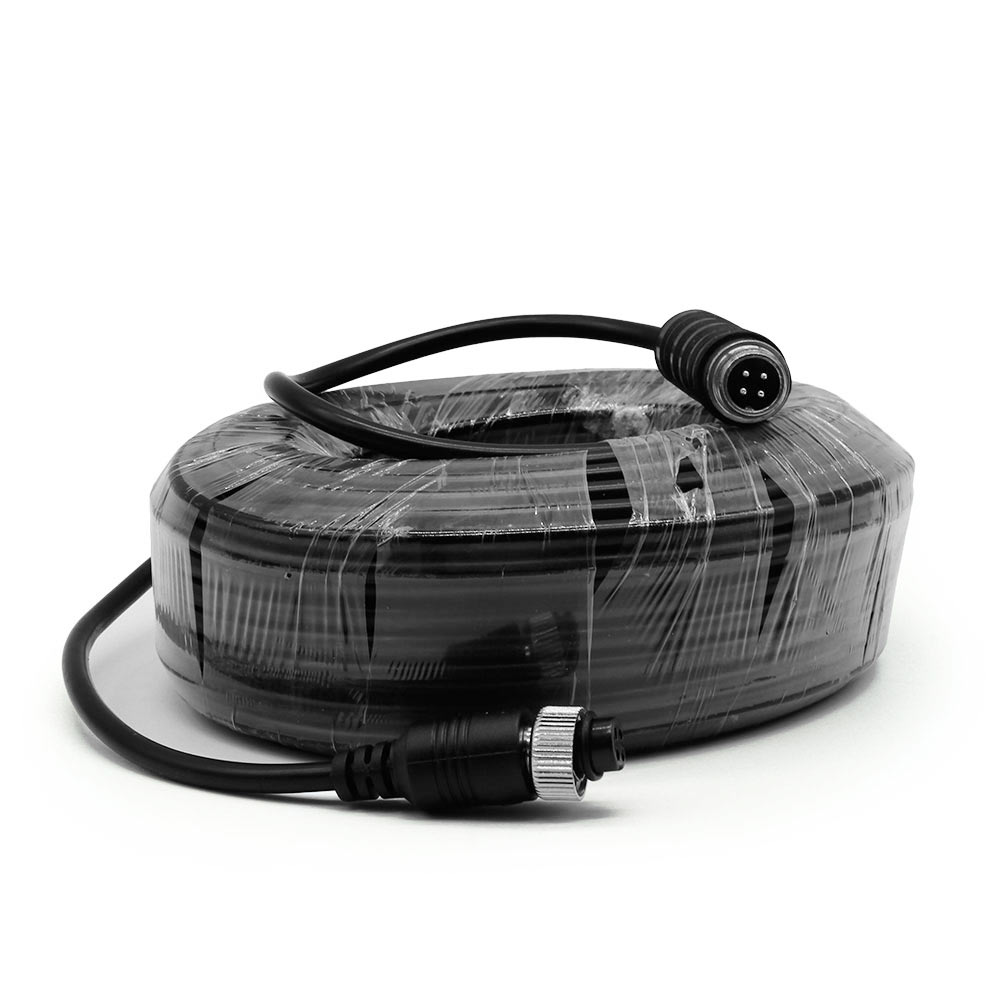

Ext 1

Ext 2

4 Pin Aviation Extension Cable For MDVR & AHD Cameras

– Waterproof copper backup rear view camera Cable

1) 4pin aviation connector male to 4pin female connector

2) cable diameter 5.0mm,length 20m(optional)

3) PVC insulation, conductor: pure copper

4) it is with seal ring and waterproof cover around connector

5) with locker design,it is conected very strong.

6) With Foil and Braid Shielding

7) Suitable for Rigid lorry,Semi-trailer truck,Articulated lorry,Petrol tanker,Heavy transporters,Refuse collection vehicle,Agricultural machines,Construction machines,Bus,Carrier,Tractor,Van,etc

SKU: 242425 Category: Mobile DVR

Description

CCTV Backup Rear View reverse Camera Cable Extension 4 Pin Aviation Connector is extension cable for car cameras,usually the video cable is installated in all kinds of vehicle,like Rigid lorry,Semi-trailer truck,Articulated lorry, Petrol tanker,Heavy Transporters,Refuse collection vehicle,trailer,Bus,Carrier,Tractor,Van etc. the video cable is x length,it can connected front car monitor to back side car camera. the trailer spiral cable is made by pure copper material, it can keep good signal conveying.the connector is 4 Pin aviation plug-socket, it is easy to install.

CCTV Backup Rear View reverse Camera Cable 20M Extension 4 Pin 4Pin Aviation Connector

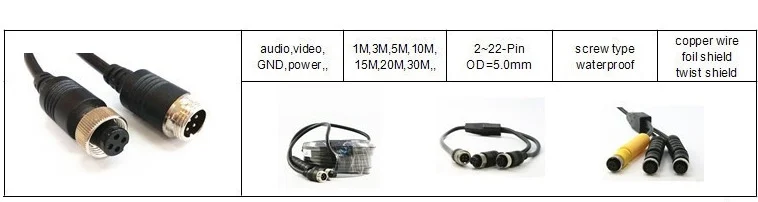

Detailed Images

– Waterproof copper backup rear view camera Cable

1) 4pin aviation connector male to 4pin female connector

2) cable diameter 5.0mm,length 1-50m(optional)

3) PVC insulation, conductor: pure copper

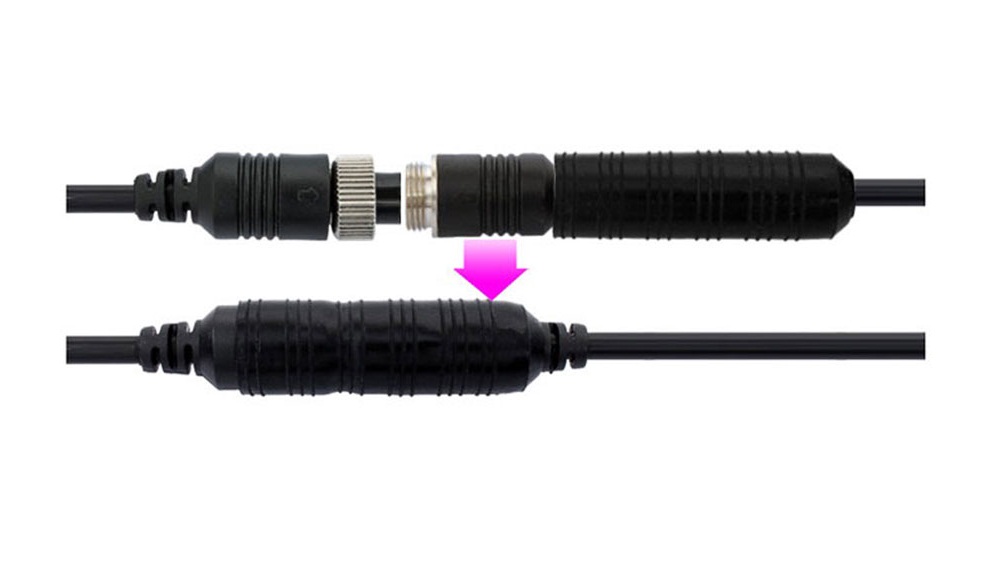

4) it is with seal ring and waterproof cover around connector

5) with locker design,it is conected very strong.

6) With Foil and Braid Shielding

7) Suitable for Rigid lorry,Semi-trailer truck,Articulated lorry,Petrol tanker,Heavy transporters,Refuse collection vehicle,Agricultural machines,Construction machines,Bus,Carrier,Tractor,Van,etc.

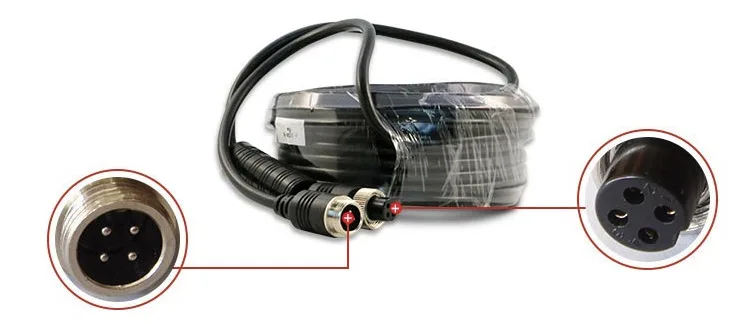

CCTV Backup Rear View reverse Camera Cable 20M Extension 4 Pin 4Pin Aviation Connector

CCTV Backup Rear View reverse Camera Cable Extension 4 Pin 4Pin Aviation Connector spec.

Connector plating	4 pin metal connector	Pre mold	PE Low Density
Contact	Copper Alloy	Withdraw Force	10N Min
Shielding	Foil and Braid	Insertion Force	35N Max
Jacket Color	black or white	Contact Resistance	0.01 OHM Max
Conductor	pure copper	Insulation Resistance	10M OHM /300V Min
Over mold	PVC 80Pa ,UL94V-0 Black	length	1-50M

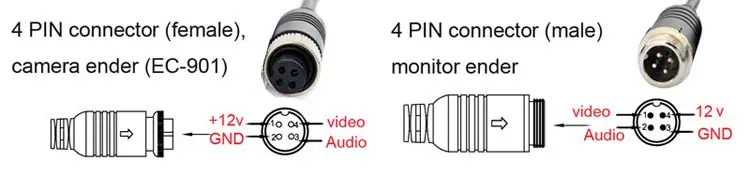

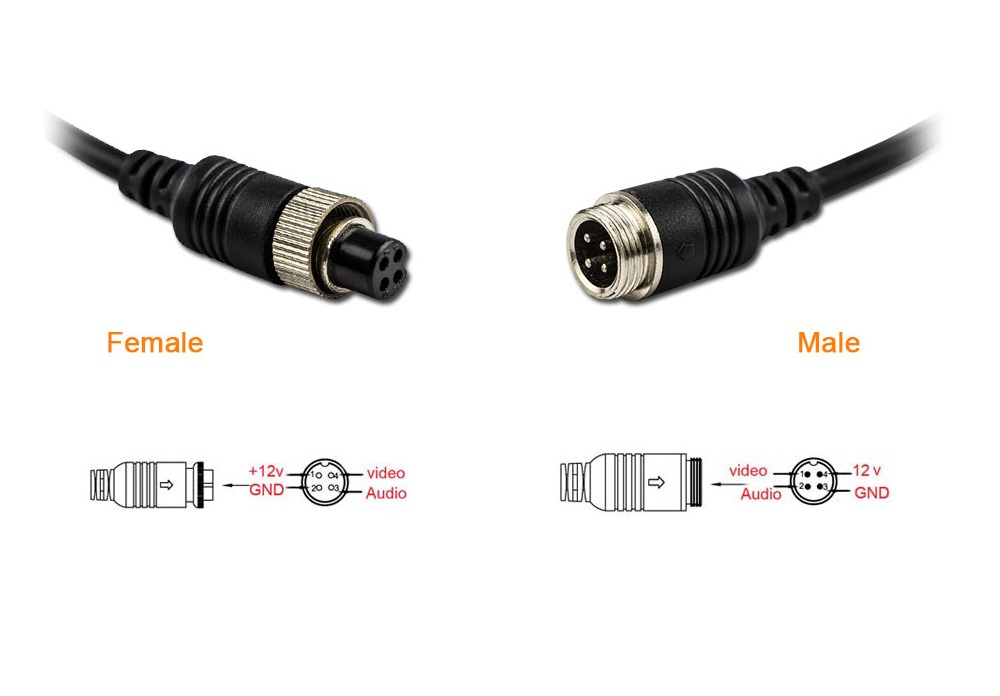

CCTV Backup Rear View reverse Camera Cable Extension 4 Pin 4Pin Aviation Connector Definition.

CCTV Backup Rear View reverse Camera Cable 20M Extension 4 Pin 4Pin Aviation Connector

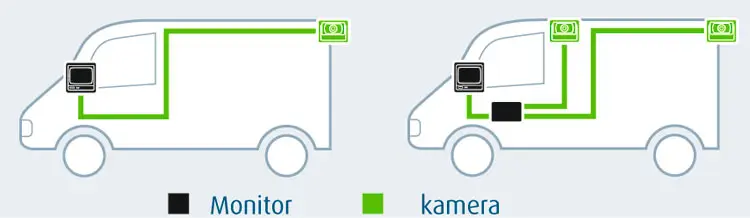

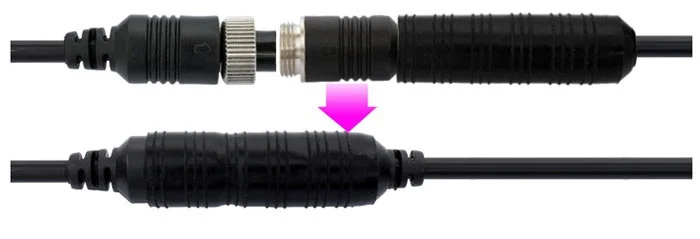

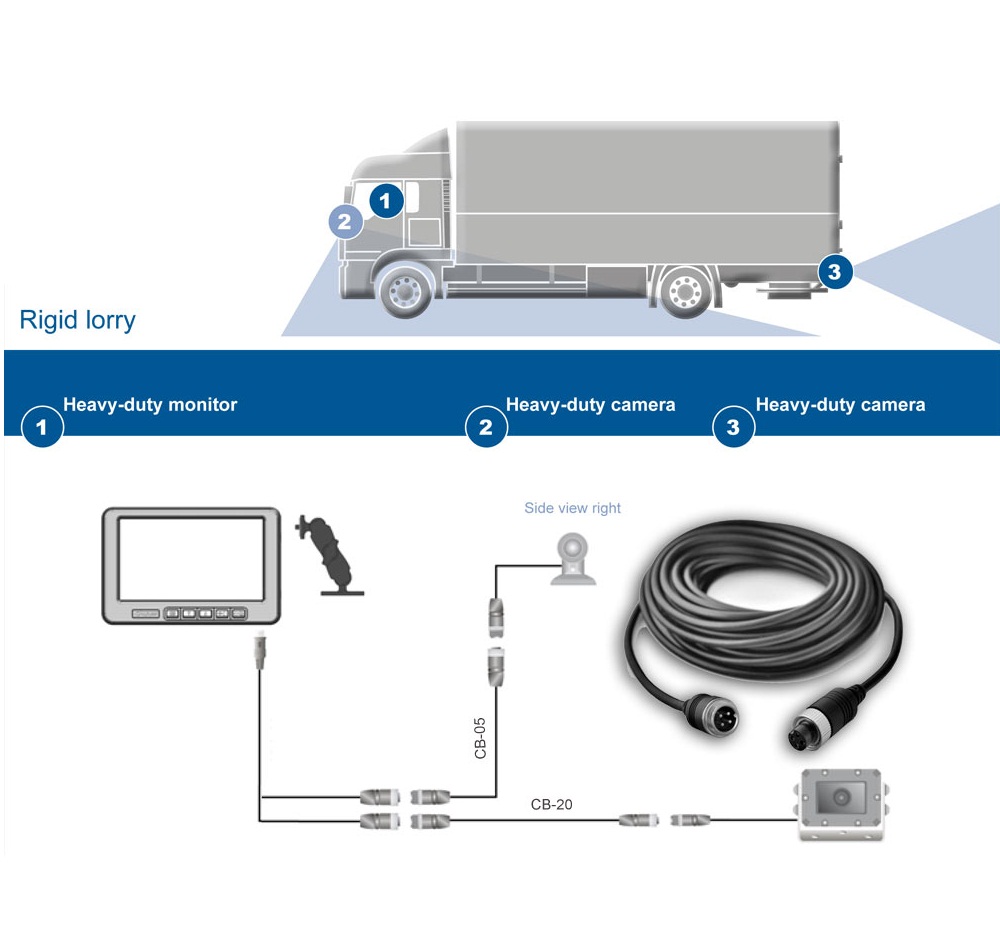

Extension camera Cable Installation:

CCTV Backup Rear View reverse Camera Cable 20M Extension 4 Pin 4Pin Aviation Connector

Additional information

Length	1M, 2M, 3M, 5M, 8M, 10M, 15M, 20M, 30M, 50M
